2022 Doosan Lynx 2100 LMSB (Queretaro, Mexico) | Stock #4363
Have one to sell?
$114,900.00 USD
ConditionUsed
1 available

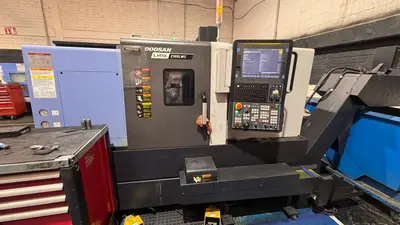

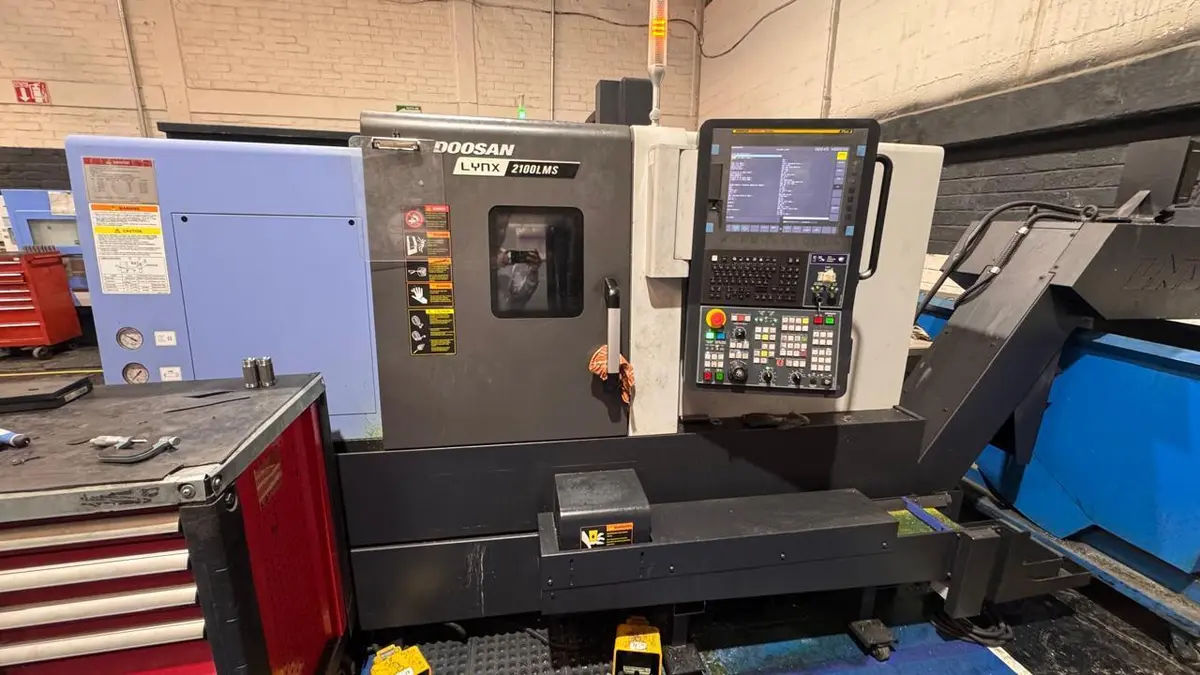

Up for sale: 2022 Doosan Lynx 2100 LMSB CNC Lathe located in Queretaro, Mexico. Excellent opportunity to own a used, high-quality machine from the renowned DOOSAN brand. Contact for more details on stock availability.
Bar Capacity: 2"
Main Chuck Size: 8"
Sub-Spindle Chuck Size: 6"
Spindle Speed: 4,500 RPM
Spindle Motor: 20 HP
X Axis Travel: 8.1"
Z Axis Travel: 23.6"
Turret Tools: 12 Station
Max Turning Dia: 11"
Max Turning Length: 20.3"
Max Swing: 23.6"
Swing Over Cross Slide: 17.7"
Sub-Spindle Speed: 6,000 RPM
Sub-Spindle Motor Power: 7.4 HP
Sub-Spindle Bore: 1.5"
Tool Size (OD/ID): 1" / 1.5"
Rotary Tool Speed: 6,000 RPM
Rotary Tool Motor Power: 5 HP
C-Axis Resolution: 0.001°
X-Axis: 46.5"/sec
Z-Axis: 46.5"/sec
