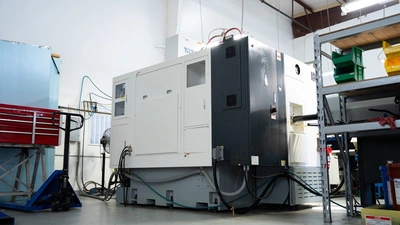

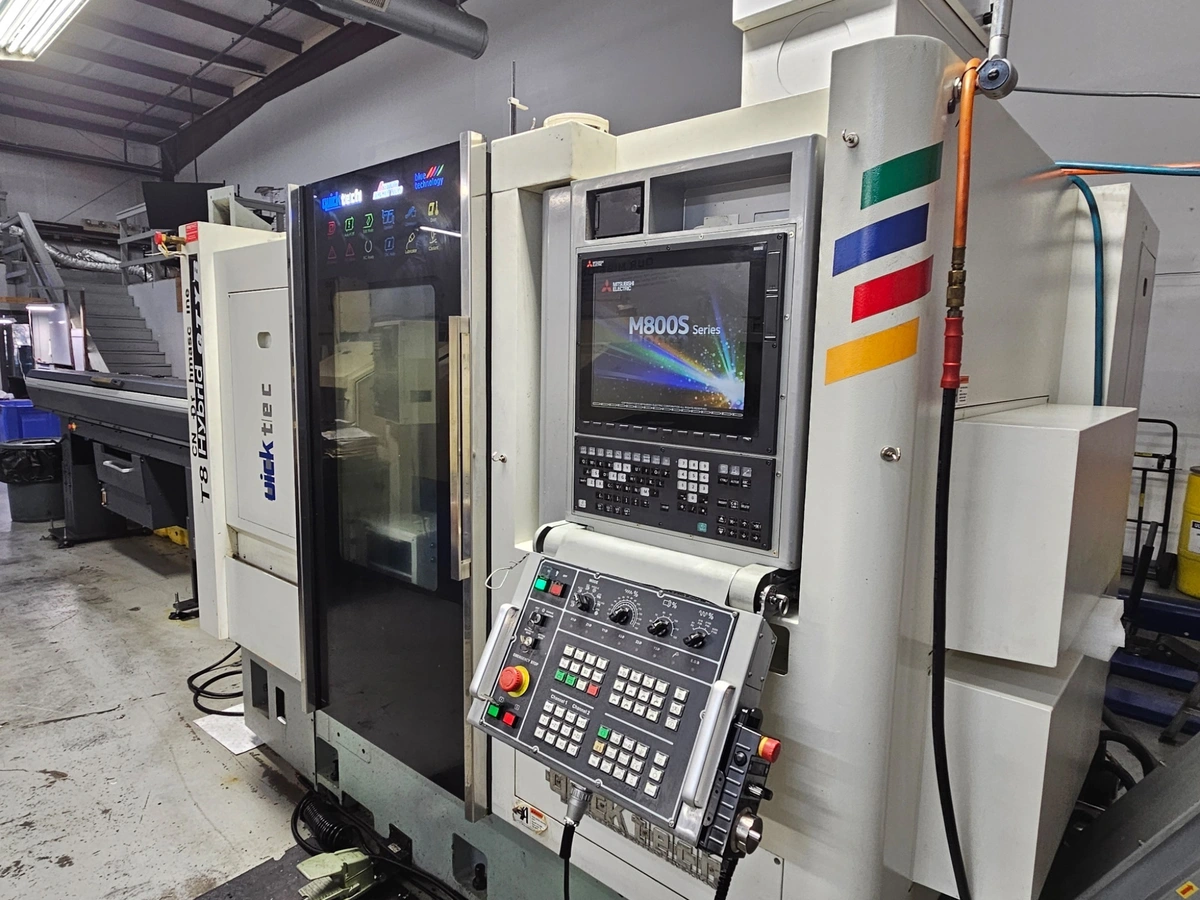

2017 Quick Tech T-8 Hybrid | Stock #4360

Spindles:

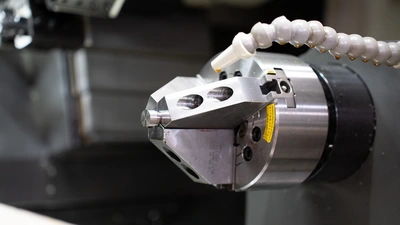

Main Spindle: 15 HP high-torque drive, up to 4,000 RPM, supports 65 mm bar stock; uses P4 high‑precision bearings
Sub-Spindle: 7.5 HP integral motor, up to 4,000 RPM, 42 mm collet capacity; full C-axis with synchronized part transfer

Tooling & Turret Systems:

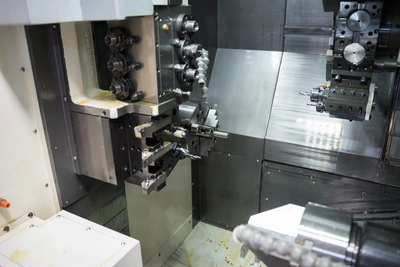

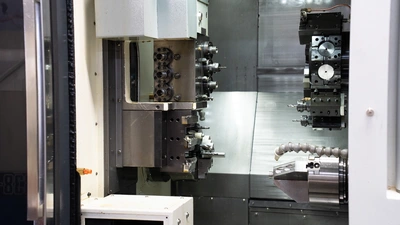

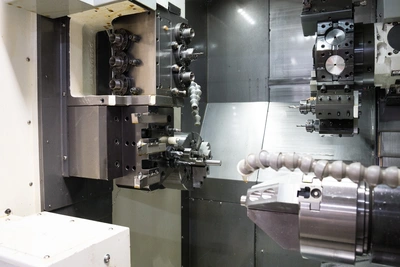

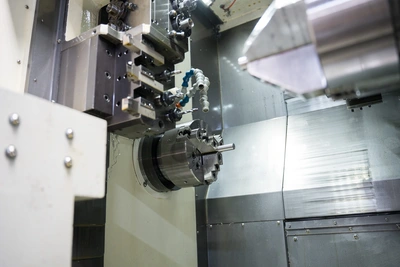

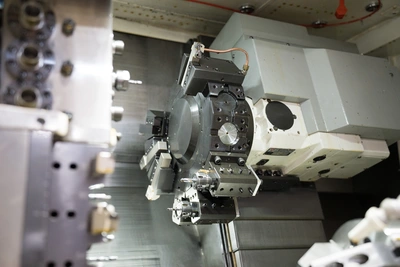

Main Turret: 12-station BMT-55 live turret, each station capable of live tooling; includes a true linear ±80 mm Y-axis travel, 5 HP live-tool spindle

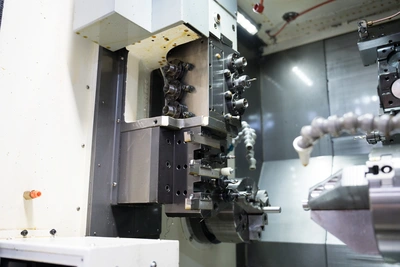

Sub-Spindle Tooling: 4-axis gang slide (X, Y, Z + rotary 360° B axis); supports 5 O.D. turning tools, 9 I.D. tools, and 12 live tools (2 HP spindle motor); rigid tapping available

Axes & Capacity:
Total Controlled Axes: 9 (X, Y, Z on both spindles plus dual B‑axes and synchronized C‑axes)
Swing Capacity: 19.7″ over bed; 11.8″ over cross‑slide (≈500 mm / 300 mm)
Tool Capacity: At least 38 tools (live + static) standard
