| Swing | 28" | 711.2 mm |
| Machining Length | 28.7" | 728.98 mm |
| # Axis | 2 | 2 |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 3.5" | 88.9 mm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 3,000 RPM | 3,000 RPM |
| Turning Dia | 16.14" | 409.96 mm |
| Tailstock | 'No' | 'No' |
| Live Tooling | 'Yes' | 'Yes' |
| Sub Spindle | No | No |

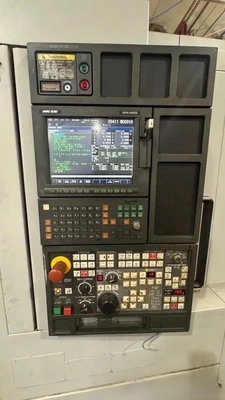

| Control | CNC (Mori Seiki MAPPS III) | CNC (Mori Seiki MAPPS III) |
| Dimensions | 146 in x 77 in x 76 in | 146 in x 77 in x 76 in |
| Weight | 16,500 lbs | 16,500 lbs |
Bar capacity
3.5"

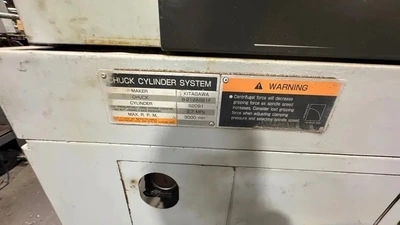

Chuck size
15"
Spindle speed
3,000 RPM
Spindle motor
40 HP
X axis travel
11"
Z axis travel
32.3"
Rapid rate z axis
944 IPM

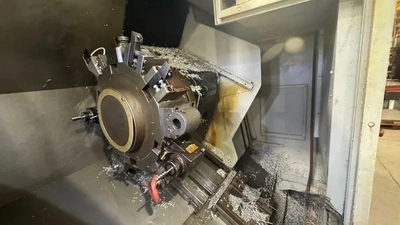

Turret tools
12 Station
Rapid rate x axis
787 IPM
Max turning dia
24.4"
Max turning length
28"
Max swing
28.8"

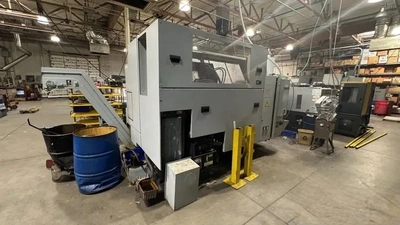

Chip Conveyor
Live Tooling
