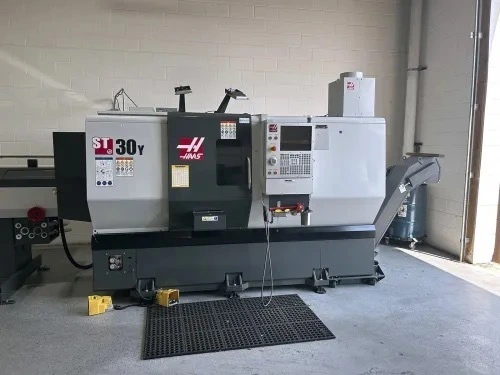

2020 Haas ST-30Y CNC Lathe | Stock #4647
Have one to sell?
ConditionUsed
1 available
This 2020 Haas ST-30Y CNC Lathe features Haas Next Generation Control, a 10″ hydraulic chuck, 3″ bar capacity, and a 3,400-RPM, 30-HP main spindle. Y-axis capability, full C-axis, live tooling, and rigid tapping support turning and milling in fewer setups. Includes two live toolholders, a chip conveyor, and high-pressure coolant—a versatile package for job shop and production work.
Chuck Size:
10"
Maximum Cutting Diameter:
13.75"
Maximum Cutting Length:
32.5"
Maximum Bar Capacity:
3.00"
Maximum Part Swing:
21.0"
X-Axis Travel:
9.40"
Y-Axis Travel:
±2.00" / 4.00" total
Z-Axis Travel:
32.50"
X-Axis Rapid Traverse:
472 IPM
Y-Axis rapid traverse:
472 IPM
Z-Axis Rapid Traverse:
945 IPM
Main Spindle Speed:
3,400 RPM
Main Spindle Motor:
30 HP
Maximum Spindle Torque:
300 ft-lb @ 500 RPM
Spindle Nose:
A2-6
Spindle Bore:
3.50"
C-Axis:
Full interpolated C-axis
C Axis Positioning:
±0.01°
Turret:
12-Station BMT65
Live Tooling Speed:
4,000 RPM standard
Coolant Capacity:
55 Gallons
Machine Weight:
Approx. 11,340 lbs
Control:
Haas Next Generation Control
Electrical:
220V / 3 Phase / 50-60 Hz
Full Load:
70 Amps

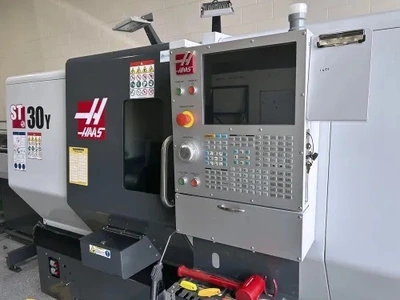

Haas Next Generation CNC Control

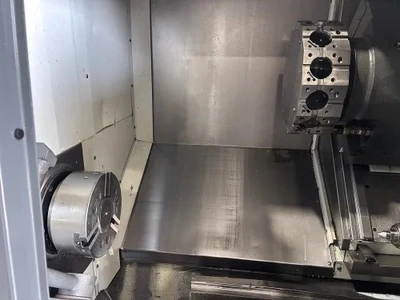

10" hydraulic chuck
3.0" bar capacity
3400 RPM/30 HP main spindle
Y-axis
Full C-axis
Live tooling
2 Live Tool holders included

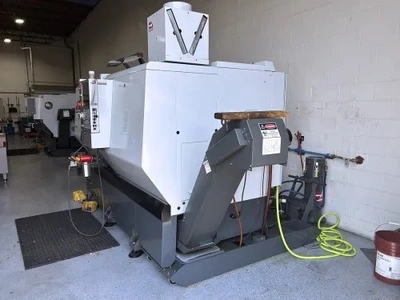

Chip conveyor

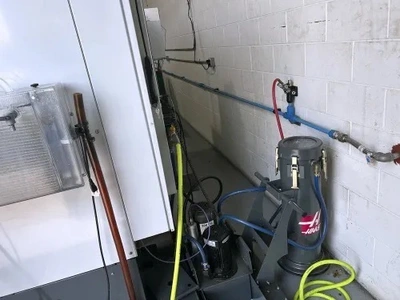

High Pressure coolant system
Rigid tapping
