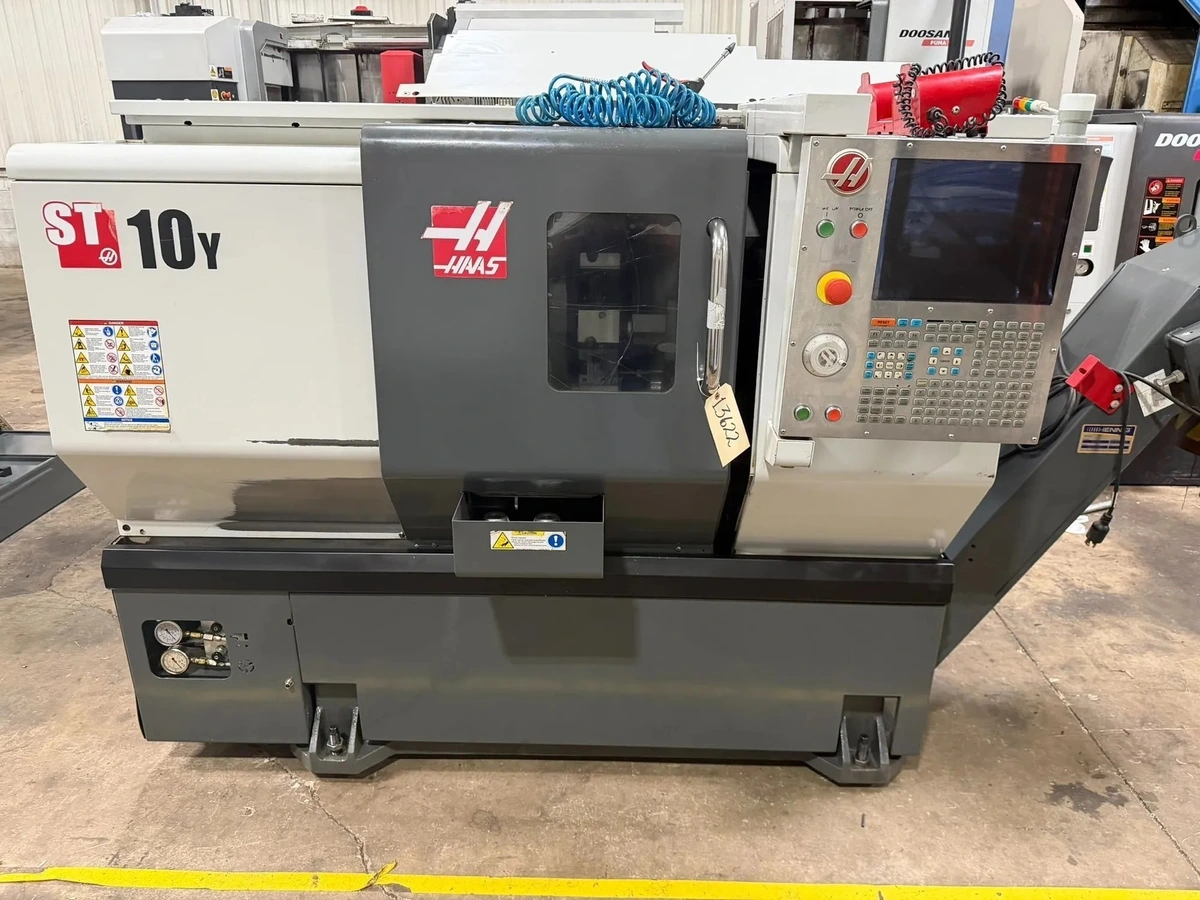

2016 HAAS ST-10Y CNC 4-AXIS TURNING CENTER WITH MILLING & Y-AXIS | Stock #4642
Have one to sell?
ConditionUsed
1 available
Versatile and compact CNC turning center featuring Y-axis capability, live tooling, and C-axis positioning for precision turning, milling, drilling, and tapping operations. The Haas ST-10Y allows multiple machining operations in a single setup, reducing cycle times and improving productivity. Ideal for precision machining shops looking for a reliable, space-saving CNC lathe with milling capabilities.
Swing Diameter:
Over front apron 25.25"
Over cross slide 16.25"
Over tailstock 23.5"
Capacities:

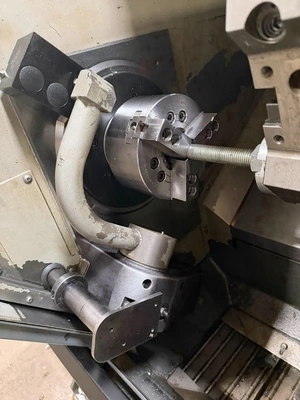

Chuck size 6.5"
Max. Cutting diameter (varies with turret) 12"
Max. Cutting length (without workholding) 14.0"
Bar capacity 1.75"
Travels & Feedrates:
X-Axis 7.88"
Y-Axis +/- 2"
Z-Axis 14"
Rapids on X 472 in/min
Rapids on Y 472 in/min
Rapids on Z 1200 in/min
Max. thrust X 2400 lb
Max. Thrust Y 2300 lb
Max. Thrust Z 3700 lb
Spindle:
Max. rating 15 HP
Max. Speed 6000 RPM
Max. Torque 75 ft-lb @ 1300 RPM
Spindle nose A2-5
Spindle bore 2.31"
Draw tube bore 1.81"
Main Spindle C-Axis:
Max. Rating 5 HP
Positioning (+/-) 0.01 deg
Brake Clamp Force 1000 lb
Brake diameter 14.4"
Control type (interpolated motion & control)
Turret:
Number of tools 24 Stations
OD vs ID Tools 12 VDI
Boring Bar rear clearance (from back of turret) 0.75"
Live Tooling:
Tooling VDI40
General:
Air Required 4SCFM, 100 PSI
Coolant Capacity 15 Gal.

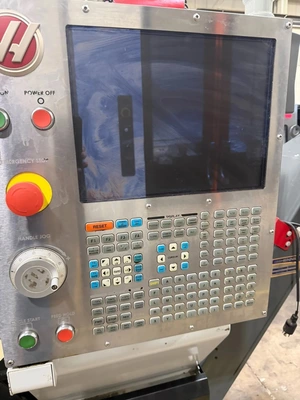

Haas CNC Controls
C-Axis
Y-Axis

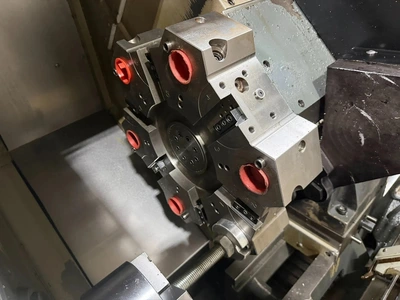

24 Position VDI Turret with Live Tooling
6000 rpm live tooling on turret
Collet Chuck
Remote jog handle
Rigid Tapping
Spindle Orientation
Coolant System
Automatic Tool Presetter
Belt Type Chip Conveyor

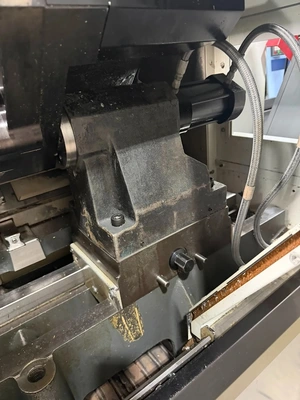

Tailstock with Hydraulic Quill
Parts Catcher
ethernet connection
750 megabit expanded memory

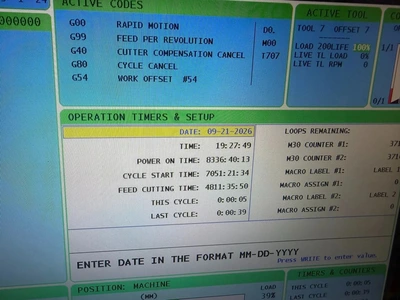

4667 cutting hours
Note: New Price Approx. $135,000.00
